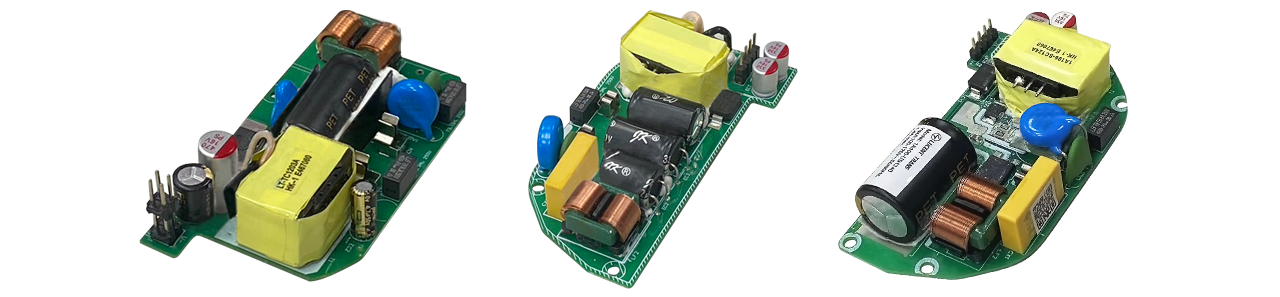

Open Frame Power Supplies are crafted to deliver not only power but also reliability and safety, with advanced features that make them suitable for a wide array of professional and industrial applications.
| Model | Input Voltage | Output Rating | Output Power | Surge protection | Dimension |
|---|---|---|---|---|---|
| OF-001 | 90~120 Vac | 12V/3A | 36W | 6KV | 75.5 x 41 x 15 (mm) |
| OF-002 | 90~120 Vac | 12V/3.5A | 42W | 6KV | 79 x 43 x 17.2 (mm) |
| OF-003 | 90~120 Vac | 12V/4A | 48W | 6KV | 79 x 39 x 16.2 (mm) |
| Model | Input Voltage | Output Rating | Output Power | Surge protection | Dimension |
|---|---|---|---|---|---|
| OF-004 | 90~305 Vac | 54V/1.7A | 91.8W | 6KV | 130 x 50 x 36 (mm) |
| OF-005 | 90~264 Vac | 20V/5A | 100W | 6KV | 78.7 x 67 x 24 (mm) |
| OF-006 | 90~264 Vac | 24V/5A | 120W | 6KV | 78.7 x 67 x 24 (mm) |
| OF-007 | 90~264 Vac | 24V/6.45A | 155W | 6KV | 105 x 95 x 30 (mm) |
